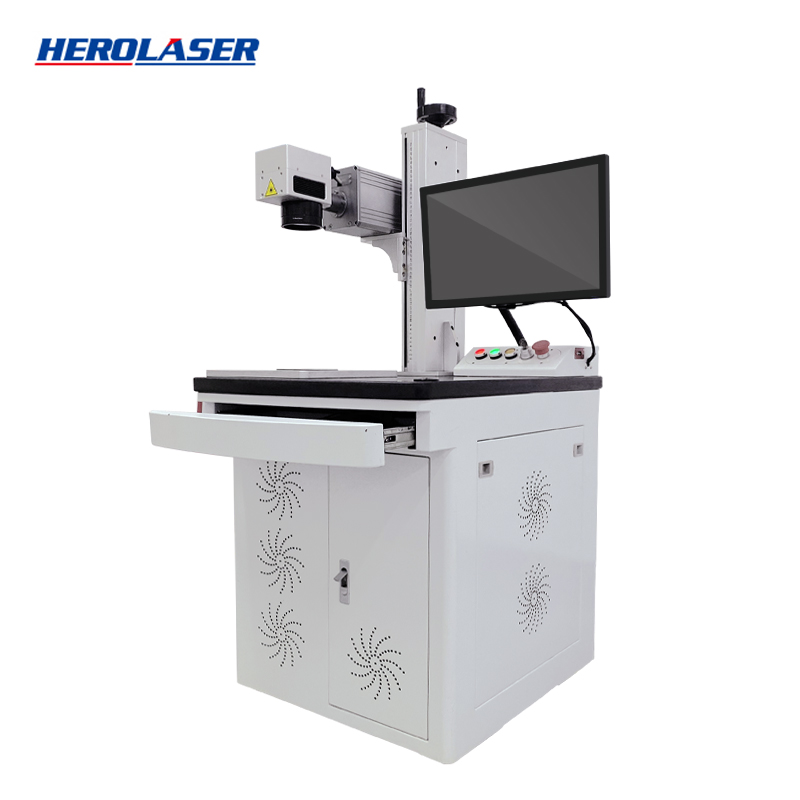

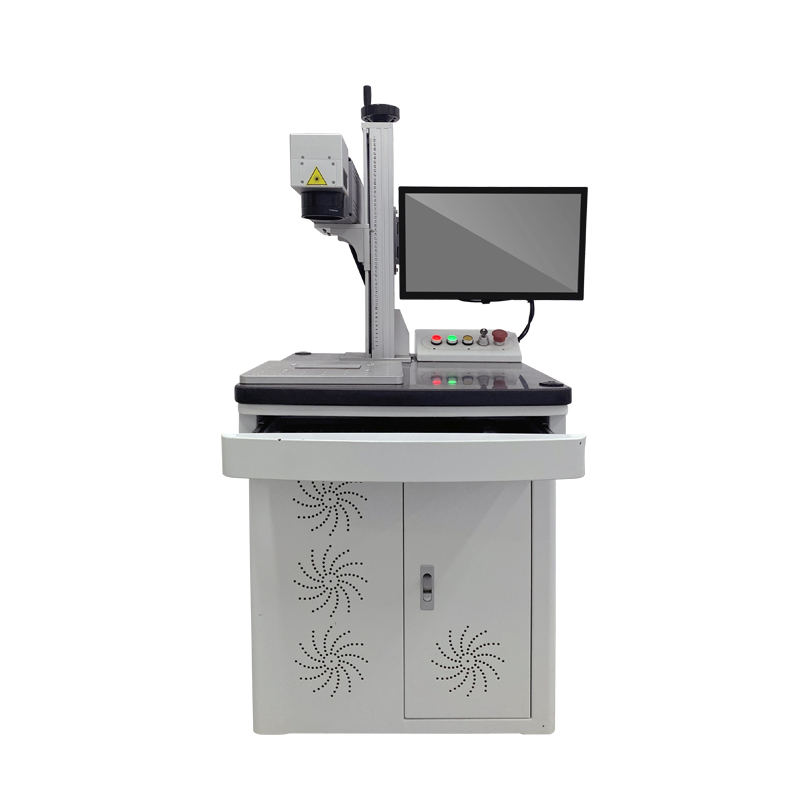

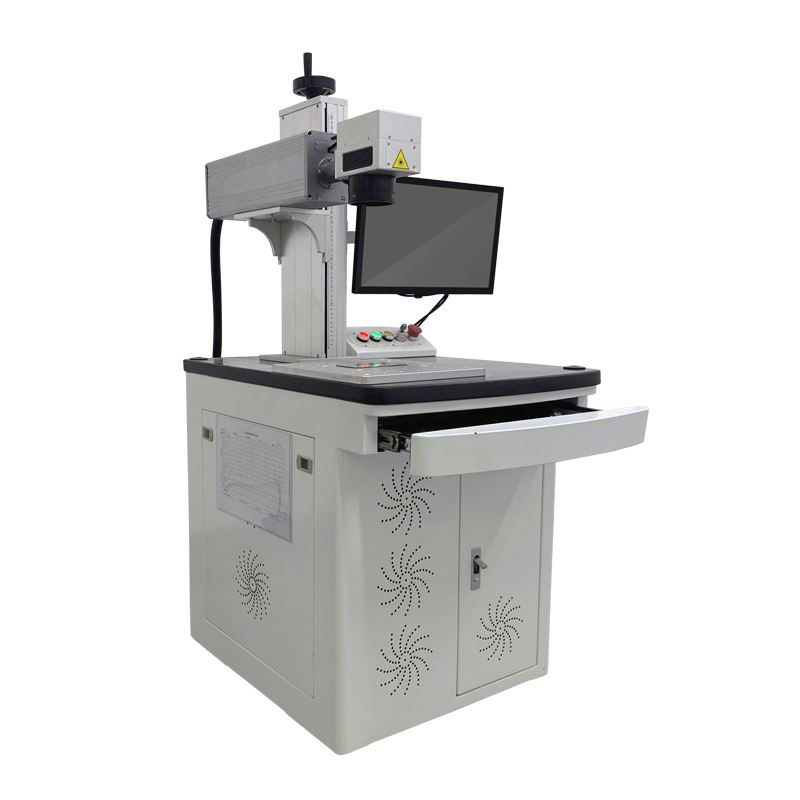

HeroLaser 3D Laser Marking Machine

Laser marking machine
Make an inquiry now
Product introduction

1. High efficiency in electrical / optical conversion,  wind cooling ;
2. Small in size, with high beam output quality, high reliability;
3.The marking speed is 3~12 times of first and second generation of laser markers;
4.No consumable ,12 years service life of the laser source,energy saving;
5.Low power consumption(800W).
Applicable materials and industries
1.used for fields with higher requirements in depth, smoothness and precision;
2.used to engrave metallic and non-metallic materials, for example, stainless steel decorating parts for handsets, clocks, watches, moulds, ICs, handset buttons,  bitmap marking etc

Technical specifications
Model                                        ML-MF-W20H

Laser Power                              20W
Laser wavelength                      1064nm
Repeating Frequency                20-100KHZ
Beam Quality                             M<2
Marking Range                         100mm x 100mm(Optional)
Marking Depth                          0.1-4mm(depend on material)
Marking Speed                          ≤7000mm/s
Min.line Width                           0.01mm
Min.Character                            0.15mm
Repeatability Accuracy              ±0.002
Power Supply                            220V±10% / 50-60Hz
Power Consumption                  800W
Dimensional                              1110mm x 860mm x 1520mm
Weight                                      ≤100kg
Operating System                     Win98/Win2000/WinXP/Win 7
Cooling Way                             Built-in air cooling
Control Interface                       Standard USB
File Format                               All character styles from character store of OS
Laser Type                                Pulse

Serial numberprojectparameter
OneEquipment modelML3015B
TwoLaser wavelength1070nm
ThreeMaximum output power500W-3000W
FourEffective cutting range3000mm×1500mm
FiveCutting thicknessApparent laser power and material
SixCutting speedApparent laser power and material
SevenPositioning accuracy of worktable≤±0.05mm
EightElectricity demandAC380V ± 5%/ 50Hz
NinePower consumption of the whole machine≤7.5KW
TenCabinet size7750mm*2600mm*2170mm
ElevenLoad bearing of machine tool800KG
